Geothermal Heat Pump: Smart Upgrade or Money Pit?

So, you’ve got an older house built before the age of mass production. Maybe it’s a charming Craftsman, a decorated Victorian, or a stately Colonial Revival with all the character (and quirks) you love. Now, you’re thinking about upgrading to a geothermal heat pump, that fancy underground system that promises lower energy bills and a smaller carbon footprint.

But hold up, before you start drilling holes in your yard and kissing your old furnace goodbye, let’s figure out whether a geothermal heat pump is actually a good idea for your home or just a really expensive science experiment.

Geothermal 101: What Even Is It?

Geothermal heating and cooling uses the constant temperature of the earth (about 50°F–60°F underground) to heat your home in the winter and cool it in the summer. It works by circulating a liquid through pipes buried underground (a “ground loop”), transferring heat to or from the earth. Your HVAC system then does its thing, delivering warm or cool air inside.

It’s insanely efficient—according to the U.S. Department of Energy, geothermal systems can cut your heating and cooling bills by up to 70%. We’re talking a SEER rating of 30 which is off the charts compared to traditional heat pumps. But just because it’s efficient doesn’t mean it’s right for every home, especially one that predates color TV.

How Big of a Lot Do You Need for Geothermal?

Good question—because while geothermal sounds amazing on paper, it does require some serious underground real estate. The amount of space you need depends on whether you’re using a horizontal loop or a vertical loop.

1. Horizontal Loops (Needs More Land)

• These require trenches 4–6 feet deep, typically laid out in loops or coils.
• A standard residential system usually requires ¼ to ¾ of an acre of open land.
• Rule of thumb: You need about 400–600 feet of pipe per ton of heating capacity (most homes need a 3–5 ton system). That means 1,200–3,000 feet of trenching.
• Best for: Homes with large yards or rural properties.

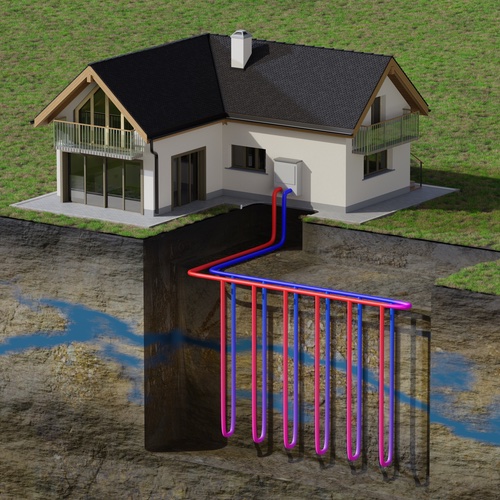

2. Vertical Loops (Less Space, More Drilling)

• These go 150–400 feet deep into the ground.
• Require about 50–150 feet of space for drilling equipment.
• Good for smaller lots where horizontal loops won’t fit.
• More expensive than horizontal systems due to drilling costs.

3. Pond/Lake Loops (If You Have a Private Water Source)

• If you have a pond or lake at least ½ acre wide and 8 feet deep, you can install submerged loops.
• Takes up zero yard space, but your pond must be within 200 feet of the house.
• Usually cheaper than drilling a vertical loop.

The Pros of Geothermal

1. Lower Energy Bills (For Real)
   If your current heating system is a relic from the Eisenhower era (hello, oil boiler from 1952), switching to geothermal could slash your monthly energy bills.
2. Year-Round Comfort
   Old houses are often drafty, and traditional forced-air systems can make things worse. A geothermal heat pump provides consistent temperatures, which means fewer hot-and-cold spots.
3. No More Burning Stuff to Stay Warm
   Say goodbye to propane, oil, or natural gas—geothermal runs on electricity. That means no more worrying about fuel deliveries or carbon monoxide leaks.
4. Quiet as a Library
   Unlike your old, clunky furnace that sounds like a jet engine revving up, a geothermal heat pump is almost silent. No more waking up in the middle of the night wondering if your HVAC system is staging a rebellion.
5. Long Lifespan
   A standard furnace lasts 15–20 years. A geothermal system? 50+ years for the underground loop and 25+ years for the heat pump. That’s like the HVAC equivalent of a tortoise.

The Cons of Geothermal

1. High Upfront Cost (Like, Really High)
   Installing a geothermal system isn’t cheap. Expect to pay between $18,000 and $45,000, depending on your property and system size (Energy.gov). Even with federal tax credits (which we’ll get to), that’s a serious chunk of change.
2. You Need Space—Lots of It
   Geothermal systems require buried loops—either in horizontal trenches or vertical wells. If your house sits on a tiny city lot, you might not have enough room.
3. Old Homes = Unique Challenges
   If your house doesn’t already have ductwork, installing a geothermal system could turn into an expensive nightmare. Radiators or baseboard heating? You’ll likely need a ducted air system retrofit, which can add thousands to the cost.
4. Digging Up Your Yard
   Want to keep that mature landscaping you spent years cultivating? Too bad—geothermal installation requires excavation, meaning your yard is going to look like a construction site for a while.
5. Electricity Costs Matter
   Yes, geothermal is efficient, but it still runs on electricity. If your area has high electric rates, the savings might not be as massive as you’d hoped.

The Ugly: Will You Ever Make Your Money Back?

Let’s talk payback period. A geothermal system can cut your energy bills by 50%–70%, but with an average install cost of $25,000, it might take 10–15 years to break even.

BUT WAIT—THERE’S A TAX CREDIT!

The U.S. government wants you to go green, so federal tax credits can cover 30% of your installation cost (Energy Star). Many states also offer rebates. This could knock your payback period down to 7–10 years.

Should You Go Geothermal? Here’s Your Cheat Sheet

✅ Geothermal might be a good fit if:
✔ Your old heating system is inefficient and expensive
✔ You plan to stay in your home for 10+ years
✔ You have enough yard space for installation
✔ Your home already has ductwork (or you’re willing to add it)
✔ You want to dramatically reduce your energy bills and carbon footprint

❌ You might want to reconsider if:
✘ You’re planning to move soon
✘ You don’t have the budget for upfront costs
✘ Your home lacks ductwork, and adding it would be pricey
✘ You have a small urban lot with no room for ground loops
✘ You really, REALLY love your yard and don’t want it dug up

Final Verdict: A Smart Upgrade—For the Right Home

Geothermal heating and cooling is one of the most efficient systems available, but it’s not a one-size-fits-all solution. For older homes, it can be a fantastic investment if you have the right setup. But if your home’s layout, lot size, or budget doesn’t align with a geothermal heat pump, you might be better off upgrading to a high-efficiency heat pump instead.

Either way, do the math before you commit—because the only thing worse than an expensive HVAC mistake is an expensive HVAC mistake you have to live with for 25 years.
