How To: Cut Tenons on a Table Saw

By Scott Sidler June 8, 2015

Mortise and tenon joinery is the great workhorse of wood joinery. It makes for extremely strong joints and it is immensely flexible in terms of the variations you can use.

how-to-cut-tenons-on-a-table-sawIf you are building something that requires 2 pieces of wood to intersect at right angles then a mortise and tenon joint is the best option you can choose.

Yes, there are other options like pocket hole screws, dowels, biscuit joints, and on and on, but none of these have the strength of the mighty mortise and tenon.

There are tons of variations like shoulder and no shoulder, through tenon, blind tenon…I could list them all but eventually your eyes would glaze over and you’d pass out.

Today I’m going to teach you how to make a simple through tenon which is pretty much the same as a blind tenon except that it goes all the way through the piece of wood instead of a blind tenon which stops inside the wood and is hidden from view.

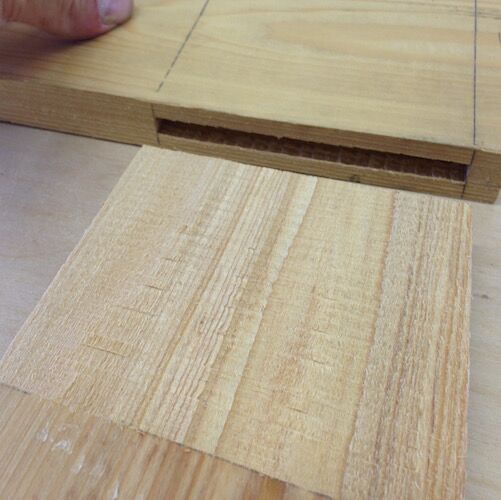

Next week we’ll cover The Easy Way to Make Mortises. But right now let’s get into how to make the tenon portion of the joint.



[wp_ad_camp_1]



How To: Cut Tenons on a Table Saw

Cutting tenons on a table saw requires one of two things.

Pick whichever one you are most comfortable with. The tenoning jig is made specifically for tenoning (as if the name didn’t tip you off), but the dado blade is just as easy and sometimes less intimidating so that’s the technique I’ll discuss today.

You can also use this technique without a dado blade it just takes longer to complete.



tenon sizing
Step 2 Size your tenon

Step 1 Cut to Length

The first step is to cut to length the board you plan to have your tenon on. The length you need is determined by the size of the piece you working. In this case, I am making a 32″ wide screen door with a through tenon so I can simply cut my board to 32″. That’s the other joy of through tenons, easier math.



Step 2 Size Your Tenon

How long does your tenon need to be? Well, in this case my through tenon will have to pass through a piece of 1×4 lumber which is 3 1/2″ wide. So my tenon needs to be 3 1/2″ long. Make a mark 3 1/2″ from the end all the way around the board

How thick should your tenon be? The rule of thumb for sizing tenon thickness is to divide the board into thirds. We’re using 3/4″ thick stock here so it’s easy to divide it into thirds.

1/4″ + 1/4″ + 1/4″ = 3/4″.

Therefore, your tenon should be 1/4″ thick. Make sense?



tenon on saw
Step 3 Set blade height to 1/3 the thickness of the board

Step 3 Setup Your Saw

Step over to your table saw and measure for your tenon. First set the fence to the length of your tenon (that’s the 3 1/2″ measurement I mentioned earlier). I usually measure the distance from the blade to the fence just to be extra precise. Mortise and tenon joinery needs to be precise.

Once the fence is set,  bring your saw blade (with the dado blade installed) up to the height you’ll need to remove to make your tenon. Since we are making a 1/4″ tenon here we need to remove 1/4″ from either side of the board.

That places the tenon directly in the center of the board and makes it 1/3 of the total board thickness. So the saw blade needs to only be 1/4″ above the table. Cut a piece of scrap lumber first if you want to test it.

It’s a lot of math but once you get the setup and cut your first tenons it begins to make more sense.

Step 4 Cut to Thickness
Step 4 Cut to Thickness



Step 4 Cut to Thickness

Get out the mitre gauge for your table saw and lay the board flat on the table up against the mitre gauge. This will act as your cross-cut sled to keep the board perfectly square to the fence.

Just like in the picture run the board over the blade so it takes off a portion of the board with each pass. Then move the board over slightly with each pass until it is riding up against the fence.

Once you have cut off the first side flip the board over and cut the second side the same way.



Step 5 Cut the Shoulder

Tenons don’t have to have a shoulder on them but I like them and it’s easy to do while you’re already setup. Turn the board on it’s edge and cut your shoulder the same way as you cut the thickness slowly working your way to the fence. Make sure you use the mitre gauge for this as well.

cut tenon on table saw
Step 5 Cut the Shoulder

You can raise the blade or lower the blade depending on how you want to size your tenon. The larger the tenon the more glue area and the stronger the joint so don’t cut too much off. I removed the same 1/4″ from each side in this scenario to create the shoulders.





As far as tenons go that is it. You tenon is ready for assembly. Next week I’ll talk about the easy way to cut mortises. And then you’ll be ready to assemble the strongest carpentry projects.

Learning to cut mortise and tenon joints properly is a big step in the life of any carpenter or woodworker. Hopefully this tutorial will get you one step closer.



Share Away!

6 thoughts on “How To: Cut Tenons on a Table Saw”

  1. It is generally not advised to use the miter gauge with the board wedged up against the fence as it makes it easy for the board to bind up and kick back. The problem is it doesn’t leave either side of the board free to fall away from the blade as you feed it through. Instead, both sides are held tight and can end up pinching the blade. There is also no way to safely feed both sides through the blade without having to reach over it or attempt some other risky maneuver.

    Also, i would be hesitant to use a dado set “freehand” like this without any featherboards.

  2. This method will certainly make a fine tenon. I have read other articles using the rip fence and miter gauge. I prefer to use my tenoning jig but not everyone has such a contraption.
    But I think anyone using this method needs to understand that using the miter gauge is not just good advice, it’s completely mandatory!
    If anyone tries this technique without the miter gauge, look out! You may experience kickback. That is the piece of wood getting caught between the rip fence and the blade and then getting thrown at your head at 100 miles per hour. IT happens so fast that there is no getting out of the way. Trust me on that one.
    Another choice is to build a crosscut sled. I use mine a lot.
